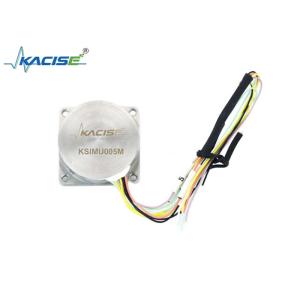

KSIMU005M Three Axis Quartz IMU
Product Introduction
KSIMU005M is an inertial measurement module developed with MEMS technology, which can measure the angular velocity and acceleration information of the carrier in three directions.
MEMS is a micro-device or system that integrates micro-sensors, micro-actuators, micro-mechanical structures, micro-power and micro-energy, signal processing and control circuits, high-performance electronic integrated devices, interfaces and communications. MEMS is a kind of independent intelligent system that can be mass-produced, the size of the system is a few millimeters or even smaller, and its internal structure is generally in the order of microns or even nanometers.
Common products include MEMS accelerometers, MEMS optical sensors, MEMS pressure sensors, MEMS gyroscopes, MEMS humidity sensors, MEMS gas sensors and their integrated products.
Feature
● Small Size,27mmX27mmX10mm
● Easy to be integrated by connect the digital interface RS422.
● Dual redundancy design to sets of gyro and accelerator integrated.
● Bias < 0.05°
Application
● Robotics
● Flight Testing
● Guidance & Control Systems
● Short Term Navigation
● Aerospace
Technical Specifications
| Parameter | KSIMU005M | |
| Power supply parameter | ||
| Input Voltage | 5±0.2 V DC | |
| Input Current | ≤100mA | |
| Product performance | ||
| GYRO | Range | ±400°/s |
| Bias | 0±0.05°/s | |
| Bias stability | ≤30°/h | |
| Scale factor | 70±3LSB/°/s | |
| Scale factor nonlinearity | ≤200ppm | |
| Vibration error | ≤0.03°/s | |
| Bandwidth | ≥100Hz | |
| Accelerometer | Range | ±10g |
| Bias | 0±0.02g | |
| Bias stability | ≤0.002g | |
| Scale factor | 1000±30LSB/g | |
| Bandwidth | ≥400Hz | |
| Interface | RS422(1-bit start +8-bit data +1-bit even parity check +1-bit stop) | |
| Baud rate | 460800bps | |
| Inner Data update speed | ≤2.5ms | |
| Environment | ||
| Operating temperature | -40～+65℃ | |
| Random vibration | 6.06 g | |
